Minn Kota Digital vs Precision Charger [Which Do You Need]

Exploring the realms of marine battery charging, we delve into the nuances of Minn Kota’s Digital and Precision chargers.

This comprehensive comparison sheds light on their unique features, efficiency, and suitability for avid mariners, guiding you to make an informed buying choice for your trolling motor.



4.5
4.7
Pros:
  • Adjusts to ambient temperature fluctuations
  • A precise charge every time
  • Controls the voltage and current through the cycle
Pros:
  • Low-line voltage compensation
  • Battery type selection by bank
  • Battery equalization for consistent, full charge.
4.5
Pros:
  • Adjusts to ambient temperature fluctuations
  • A precise charge every time
  • Controls the voltage and current through the cycle
4.7
Pros:
  • Low-line voltage compensation
  • Battery type selection by bank
  • Battery equalization for consistent, full charge.

Precision vs Digital Charger: The Similarities

The Minn Kota Digital and Precision chargers are both excellent products, but the Precision charger is designed with higher-level specs and features and faster charging times. The chargers have the following features in common.

Both Chargers Are Installed On Board

The chargers are permanently installed and connected to the batteries.

You don’t need to fiddle with cables or with multiple batteries and try to remember how the wires are connected.

Connect the system to a shore-based AC power supply, and the charging starts.

Automatic Temperature Compensation

This helps to prevent overcharging or undercharging the battery due to changes in the ambient temperature around the battery.

The charger senses and adjusts the charging voltage according to the temperature fluctuations.

It ensures a fast, accurate charge that extends battery life and performance.

Automatic Multi-Stage Charging

This feature helps control the voltage and current the battery receives throughout the charging cycle, depending on its state of charge and temperature.

The charger has three stages: bulk, absorption, and maintenance.

  • The bulk stage delivers maximum current until the battery reaches about 80% of its capacity.
  • The absorption stage reduces the current and increases the voltage until the battery reaches 100% of its capacity.
  • The maintenance stage maintains a constant voltage and a low current to keep the battery fully charged and prevent overcharging.

It ensures a safe and efficient charge that optimizes the battery’s health and performance.

Digital Control

The digital control delivers a faster and more precise charge every time.

The chargers have a microprocessor-based design that monitors and regulates the charging process.

It allows the charger to adapt to different battery types, sizes, and conditions and provides the best possible charge for each battery.

LED Status Display

The LED Status Display helps to inform the user of the:

  • Charge stage.
  • Maintenance mode status.
  • Error notifications.
  • Full charge for each bank.

It enables the user to easily monitor and troubleshoot the charging process and know when the batteries are ready for use.

Waterproof, Shock-And-Vibration-Resistant Construction

The chargers’ construction ensures they are protected from water, dust, corrosion, impact, and vibration.

The waterproof design withstands the chargers being placed underwater to one meter for up to 30 minutes.

They also are encased in a shock-and-vibration-resistant aluminum construction that can endure harsh marine environments.  It ensures that it is a durable and reliable charger that can withstand various weather conditions and boat movements.

Three-Year Replacement Warranty

The chargers have a full three-year replacement warranty covering any defects or malfunctions, which should give you peace of mind and confidence. Having said that, Minn Kota doesn’t have the best customer service reputation.

Precision vs Digital Charger: The Differences

There are differences between the two chargers that may affect your choice.

The Precision Charger Can Charge Gel Batteries

While both products can charge flooded AGM lead-acid batteries and Lithium batteries, only the precision charger can recharge Gel Batteries.

The Number Of Banks

A battery’s “bank” is the rating that indicates how many batteries the product can recharge simultaneously.

⚡ A single bank charger is generally designed for one 12-volt battery (12-volt motor).
⚡⚡ A double bank charger is designed for two 12-volt batteries (24-volt motor).

This increases in the same ratio for up to 5 banks (in the case of the precision charger.)

The Precision charger has more banks than the Digital charger.

You can choose from 1 to 5 banks for the Precision charger, while the Digital charger only has 1 to 4 banks.

This means that the Precision charger can charge more batteries simultaneously, or if a higher voltage battery is being charged, the banks can be “daisy chained” together to provide the higher charge required.

The Output Current Per Bank

The Precision charger outputs more amps per bank than the Digital charger. More amps mean faster charging.

The Precision charger can deliver 6 to 15 amps per bank, while the Digital charger can only deliver 5 to 10 amps per bank.

The effect is that the Precision charger will charge your batteries faster than the Digital charger.

Type Selection By Bank

The Precision charger has a battery type selection by bank feature, allowing you to select a unique battery type for each bank, such as flooded, AGM lead-acid, Lithium, and Gel Batteries.

The Digital charger does not have this feature.

Battery Equalization

The Precision charger has a battery equalization feature for flooded lead acid batteries.

This feature helps to remove sulfate crystals from the battery plates and extend the battery life. The Digital charger does not have this feature.

Low-Line Voltage Compensation

The Precision charger has a low-line voltage compensation feature. It helps adjust voltage drops caused by long extension cords or low AC power supply.

The Digital charger does not have this feature.

Price Of The Minn Kota Precision And Digital Chargers

Each of the products is geared at a slightly different market, and this is reflected in the pricing.

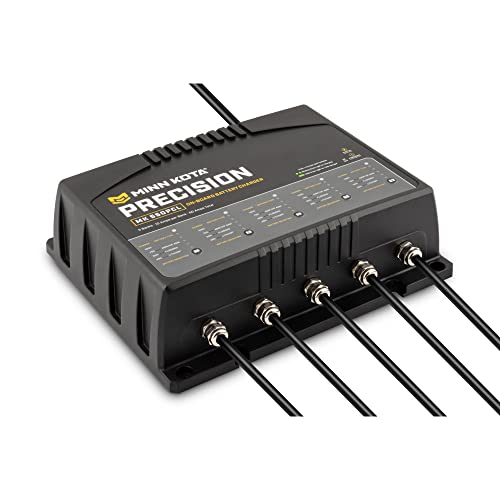

Minn Kota Precision On-Board Marine Charger [5 Bank x 10 Amps]

Check The Latest Price
We earn a commission if you make a purchase, at no additional cost to you.

There is a higher amp output precision charger model available, and it has 4 banks instead of the 5 in the 10-amp model.

Minn Kota Digital On-Board Marine Battery Charger [4 Bank x 10 amps]

Check The Latest Price
We earn a commission if you make a purchase, at no additional cost to you.

The Charging Technology Used By Both Chargers

Both chargers use smart, protective charging technology to ensure safety and efficiency when it’s time to charge. This technology includes the following:

Smart Multi-Stage Charging

This technology automatically adjusts the charging voltage and current according to the battery’s state of charge and temperature.

It consists of three stages: bulk, absorption, and maintenance.

  • The bulk stage delivers maximum current until the battery reaches about 80% of its capacity.
  • The absorption stage reduces the current and increases the voltage until the battery reaches 100% capacity.
  • The maintenance stage maintains a constant voltage and a low current to keep the battery fully charged and prevent overcharging.

Automatic Temperature Compensation

This technology adjusts the charging voltage according to the ambient temperature around the battery.

It prevents overcharging in hot temperatures and undercharging in cold temperatures.

Low-line voltage compensation

This technology adjusts for voltage drops caused by long extension cords or low AC power supply.

It ensures that the battery receives the optimal charging voltage regardless of the input voltage.

Charger Compatibility

Both the Digital and Precision chargers are designed to be compatible with trolling motors and fishing boats.

Both of the chargers are designed to be permanently installed onboard. This means that they are fully wired to the batteries and available for use without you needing to remember the wiring sequence if you are charging multiple batteries.

Depending on the number of banks, they can charge multiple batteries simultaneously. The Precision charger has up to five banks, which I find adds another level of convenience.

They can also charge different types of batteries, although the Precision charger is the only one that can recharge Gel Batteries.

Saltwater And Freshwater Use

I have used both chargers while fishing in saltwater and freshwater, and they held up very well.

They are waterproof and can withstand being underwater to one meter for up to 30 minutes. The casings resist saltwater corrosion and are designed to resist harsh marine environments.

The Precision charger has a few additional features that make it more reliable and durable in saltwater conditions:

  • It has low-line voltage compensation, which helps to adjust for voltage drops caused by long extension cords or low AC power supply. This ensures that the battery receives the optimal charging voltage regardless of the input voltage.
  • The Precision charger also has battery equalization. It helps remove the sulfate crystals from the battery plates and extend the battery life. This feature is handy for flooded lead acid batteries, which are more prone to sulfation in saltwater conditions.

Final Verdict

Minn Kota’s Digital and Precision chargers are excellent marine battery charging choices.

Feature/AspectPrecision ChargerDigital Charger
Smart Charging Technology✔️✔️
Waterproof Construction✔️✔️
Shock & Vibration Resistant✔️✔️
Three-Year Replacement Warranty✔️✔️
Number of BanksMoreLess
Output Per BankHigherLower
Battery Equalization✔️
Low-Line Voltage Compensation✔️
Battery Type Selection by Bank✔️

My money is on the Precision charger, which will give you more power, control, and durability than the Digital charger. It will also help you extend your batteries’ life and performance, saving you time and money in the long run.
